PTO Link™ Compact – Duo System (1 tractor & 1 Implement)

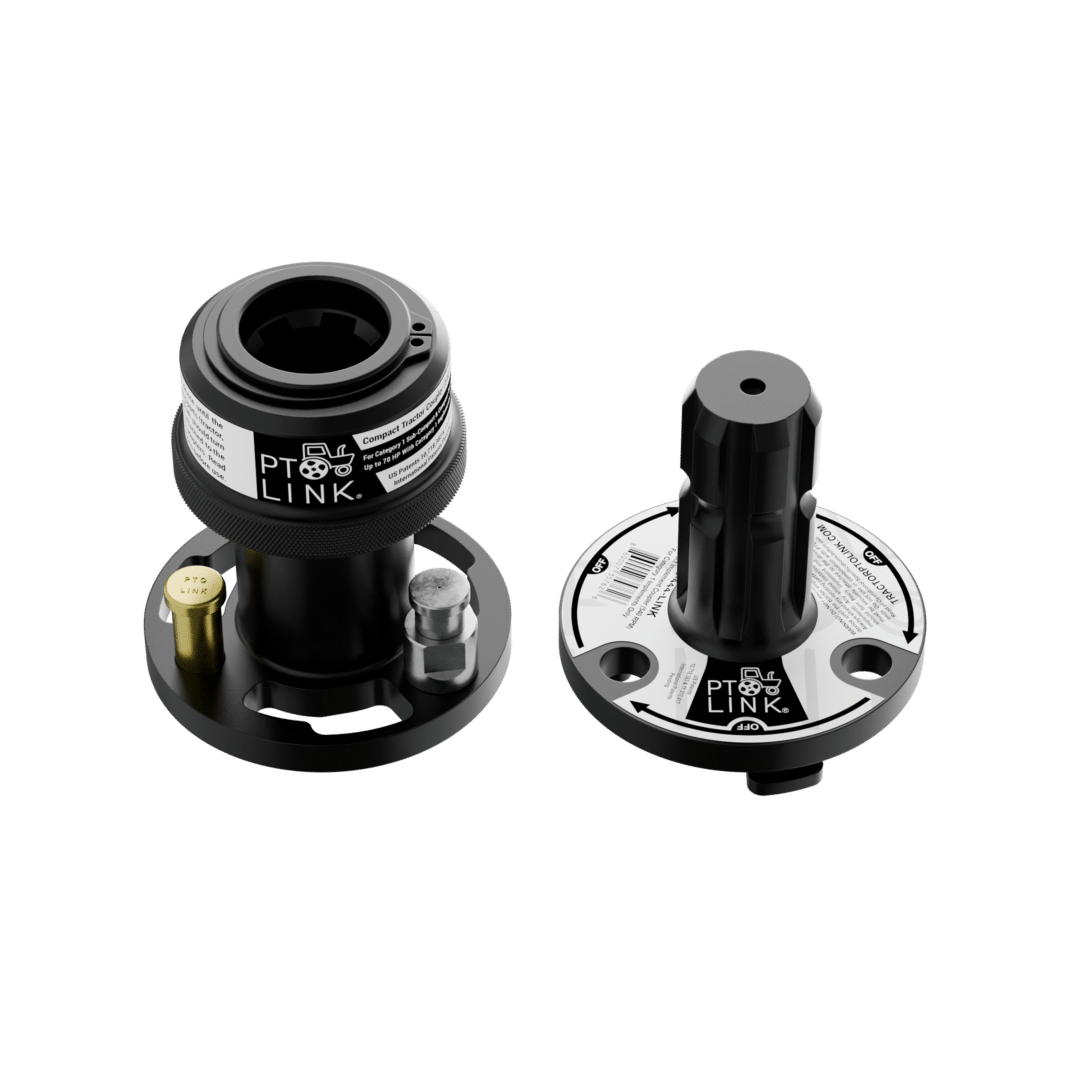

The PTO Link™ Compact system is specifically designed to work for most subcompact and compact tractors up to 40 HP*. The PTO Link™ system is designed to quickly and safely connect/disconnect tractors and implements at the PTO… in seconds! The PTO Link™ is the original, universal quick-connect system that consists of two interconnecting plates (female and male). For best results, every tractor should have the Tractor Plate (Female) installed and every implement with a PTO driveline should have an Implement Plate (Male) installed.
Need additional plates to go with your order? CLICK HERE for more system configurations!
- Works with rear 6-spline 540 RPM PTO for tractors up to 40 HP*
- Easily connect your mower, shredder, tiller or any PTO driven implement in seconds
- Simple one-step installation for each plate and easy removal. No special tools or extra installation hardware required (i.e., no set screws, snap rings or retaining clips)
- Built to last (AISI 4140 hardened alloy steel with QPQSM finish)
- Safety Plunger Pin included with every tractor (female) plate (extras ordered separately)
- When fully installed, the PTO Link™ Compact system adds approximately 4.5 inches to the overall length of the driveline.
- The PTO Link™ system is NOT an adapter. To be in compliance with ASABE standards, do not use PTO Link™ in combination with PTO adapters.
- Manufacturer’s warranty covers all manufacturing defects in materials or workmanship of all PTO Link™ parts for one year from the date of purchase.
- NOTICE for Kubota BX tractors ONLY! The specially designed Lift Arm Stabilizer Replacement Plate is required when using in conjunction with the PTO Link™ Compact system on all BX series tractors. This REPLACEMENT plate retains all of the functionality of the original Kubota part, but shortens its overall length to avoid making any contact with the PTO Link™ system when the lift arm hydraulics are in full-lift position. See more details and pricing CLICK HERE.
- Tractor (Female) Compact Plate (3.75” W x 3.75” H)
- Implement (Male) Compact Plate (3.75” W x 4” H)
- Tractor (Female) Compact Plate: 2 lbs, 14 oz
- Implement (Male) Compact plate: 2 lbs, 2 oz
- DUO Compact System (1 Female Compact Plate & 1 Male Compact Plate combined): 5 lbs
- DUO Compact shipping weight: 6 lbs
Other PTO Link™ products:
- PTO Link™ SD system for tractors 35 – 100 HP (w/splines greater than 3”)
- PTO Link™ HD system for tractors 90 -130 HP (recommended for all large mowers/shredders and flex-wing rotary cutters)
* The Compact is specifically designed to work for Tractor PTO splines less than 3 inches (e.g. Kubota BX, B & LX Series, New Holland Workmaster 25S and Yanmar SA424) and John Deere 2520 and Kioti CS2510 tractors, which are not compatible with our SD or HD models.
Note: Most other tractors (25 HP to 100 HP) are compatible with our PTO Link™ SD model, IF your tractor model is NOT listed above and your tractor spline length is 3.25” or greater, please see the PTO Link™ SD System.
Safety Notice: As an important safety precaution, be sure to turn off tractor’s engine during installation, shield any rotating parts and do not wear any loose clothing that could become entangled and pulled into the machine. PTO safety is extremely important and every precaution should be taken.
