PTO Link® SD System

The PTO Link^® SD System is our original model.  It’s designed for medium duty applications with most* compact or utility tractors rated up to 100 HP (engine net) with most three-point hitch implements (Category 1 or 2). For applications involving drawbar implements, see the HD System. *See tractor model exceptions below that MUST use the Compact System.

All PTO Link^® Systems add up to 5 inches to the implement’s PTO driveline.  Always measure and adjust driveline length as needed.

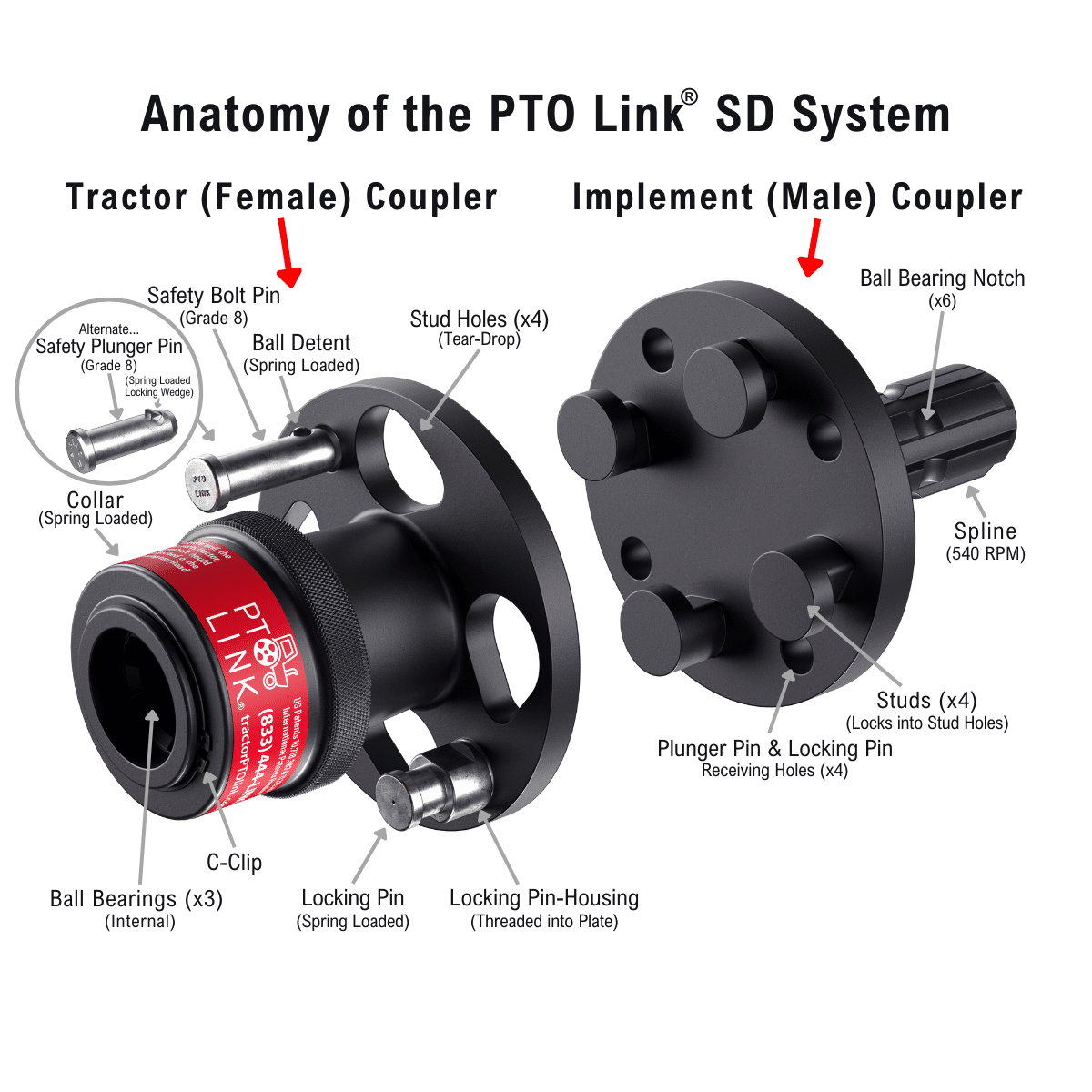

PTO Link^® is the original, universal PTO quick-connect system consisting of two interconnecting steel couplers. Its patented Open-Plate^™ system replaces the traditional spline-to-driveline connection with a visible interface design that’s both easy to see and reach. Now you can quickly and safely connect / disconnect implements at the tractor’s PTO in just seconds! A complete PTO Link^® System requires both a Tractor (Female) Coupler and an Implement (Male) Coupler. For best results, every tractor should be equipped with a Tractor Coupler, and every power-driven implement should be equipped with an Implement Coupler. See more descriptions, product features and safety information below.

• Rear 6-spline 540 RPM PTO for tractors rated from 35 HP to 100 HP (engine net).
• For most three-point hitch implements (Category 1 or 2).
• An upgrade to the PTO Link^® HD System is recommended for pull-behind implements using the drawbar, high torque scenarios, and heavy-duty implements (e.g., stump grinders, balers, augers, flail mowers, water pumps, large tillers) where reverse torque is common.
• The exception tractor models listed below must use the PTO Link® Compact System as the only compatible option (the SD and HD Systems are not compatible to the following):
  • Kubota B Series
  • Kubota BX Series
  • Kubota LX Series
  • Kioti CS Series
  • Yanmar SA Series
  • John Deere 2520
  • New Holland Workmaster 25 S
  • Cub Cadet 6284D
  • Bad Boy 3026
  • LS MT125
